Product Description

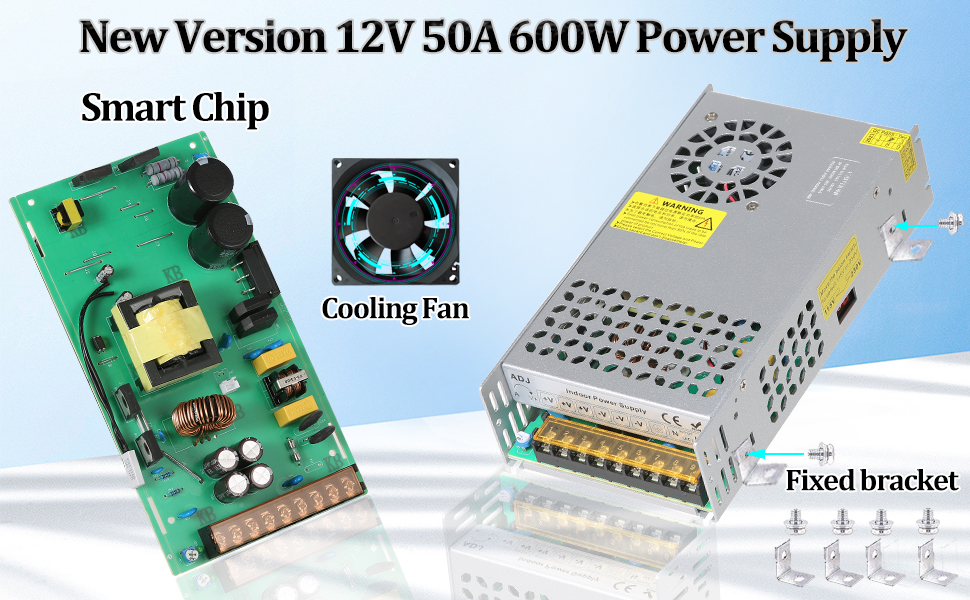

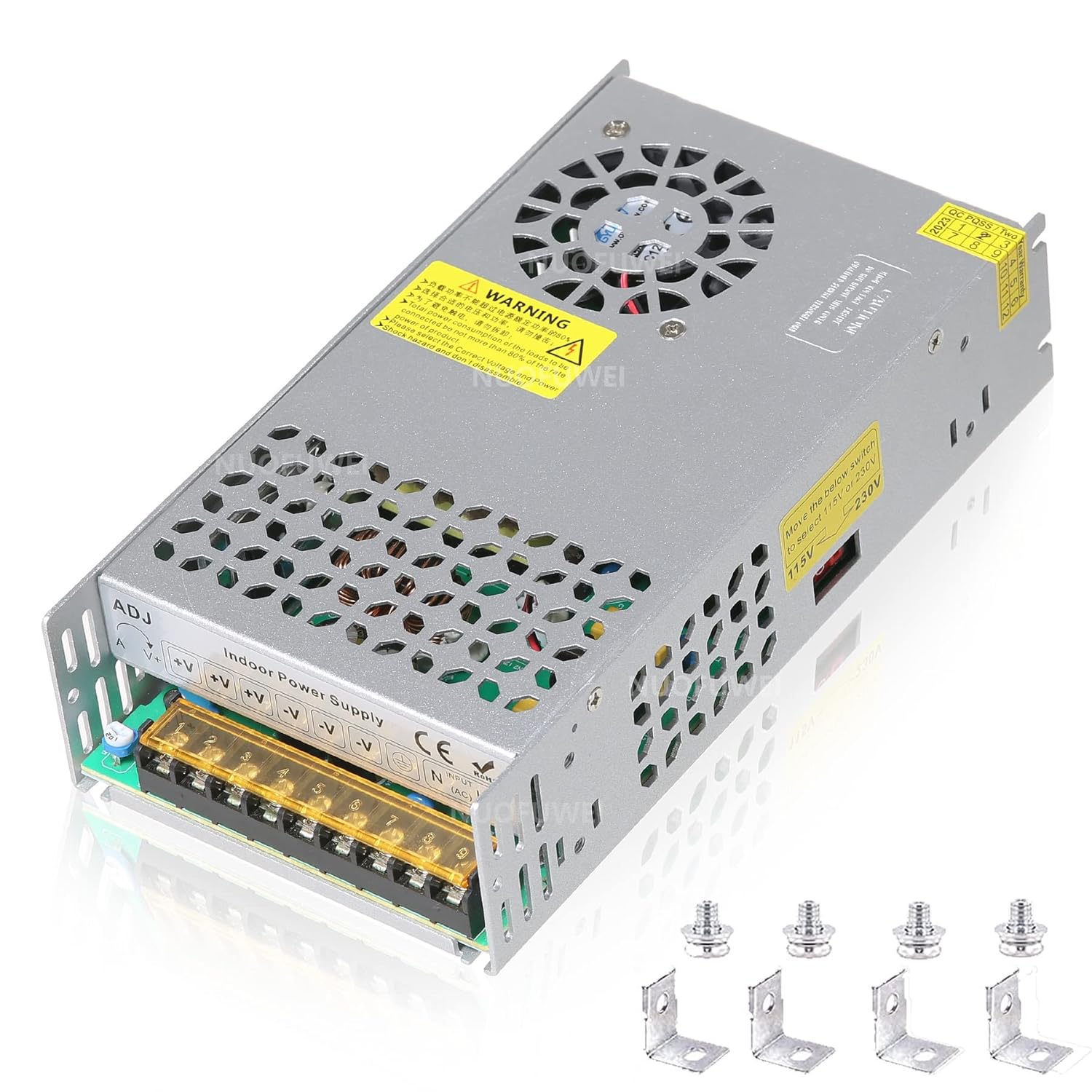

New Version 12V 50A 600W Power Supply：
Upgrade Power Supply adopts a frosted aluminum alloy casing, which is durable and won’t scratchEquipped with built-in cooling fan,with multiple cooling holes,Built-in Cooling fan and dust-proof net, Effectively prevent dust from entering, Ensure stable rotation of the fan and prevent the circuit board from burning

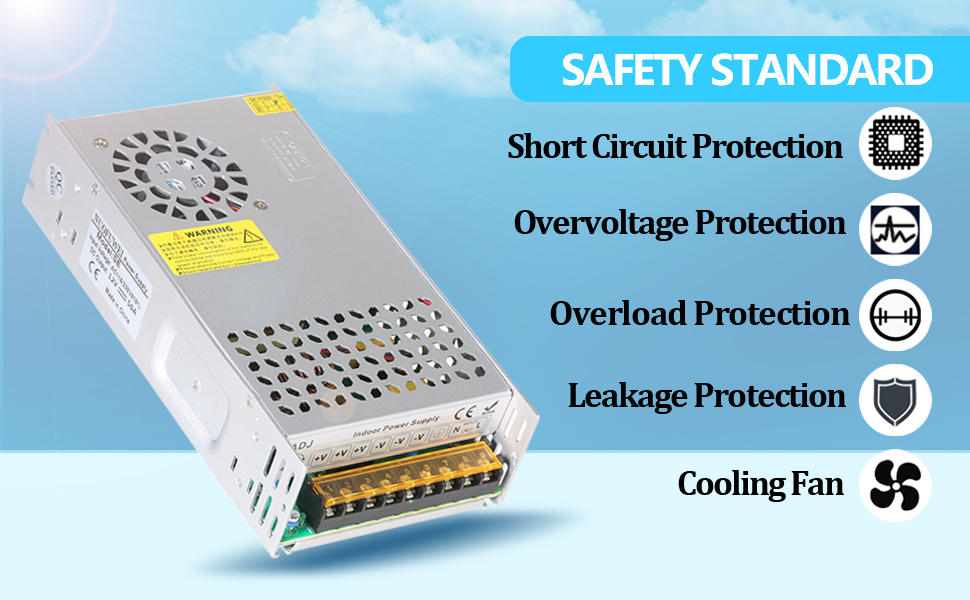

Safe Stable:Switching Power Supply Overload Protection, over voltage protection, Leakage protection and short circuit protection function.Switching Power Supply power cord and plug have passed UL/CE/RoHS certification

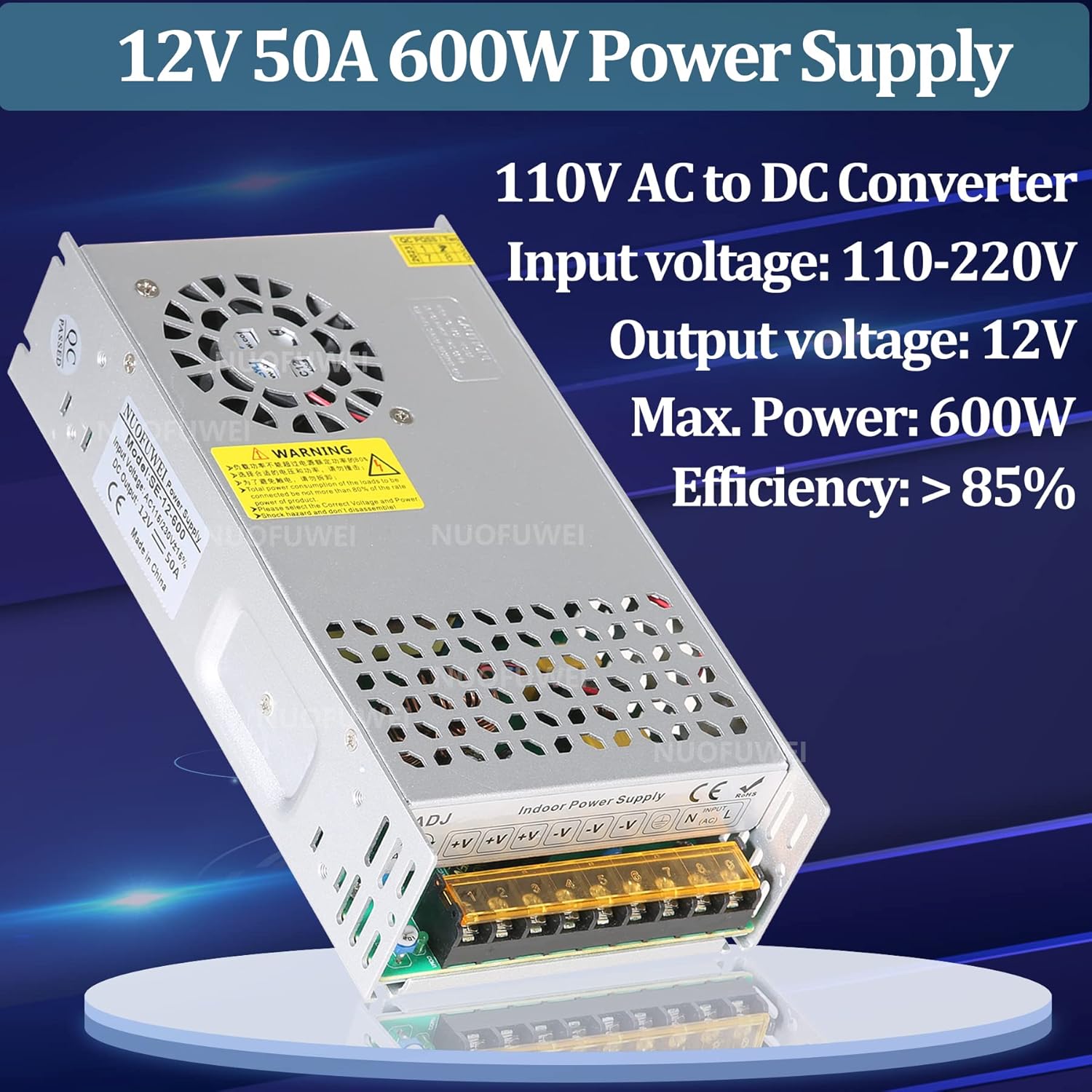

Technical Parameter
Input: AC110V(85-145V)/220V220V (185-265V)
Frequency range: 50-60Hz
Output Voltage: DC 12V (±5%)
Adjustable output voltage range: ± 5% Nominal voltage
Output Current: 50A max
Output Wattage: 600W max
Efficiency: ＞ 85%
Fix Screw Hole Diameter: 2.5mm (0.1inch)
Difference range: ± 1%
Working Storage temperature: -15 to 55degree Celsius
Environmental humidity: 10-95%

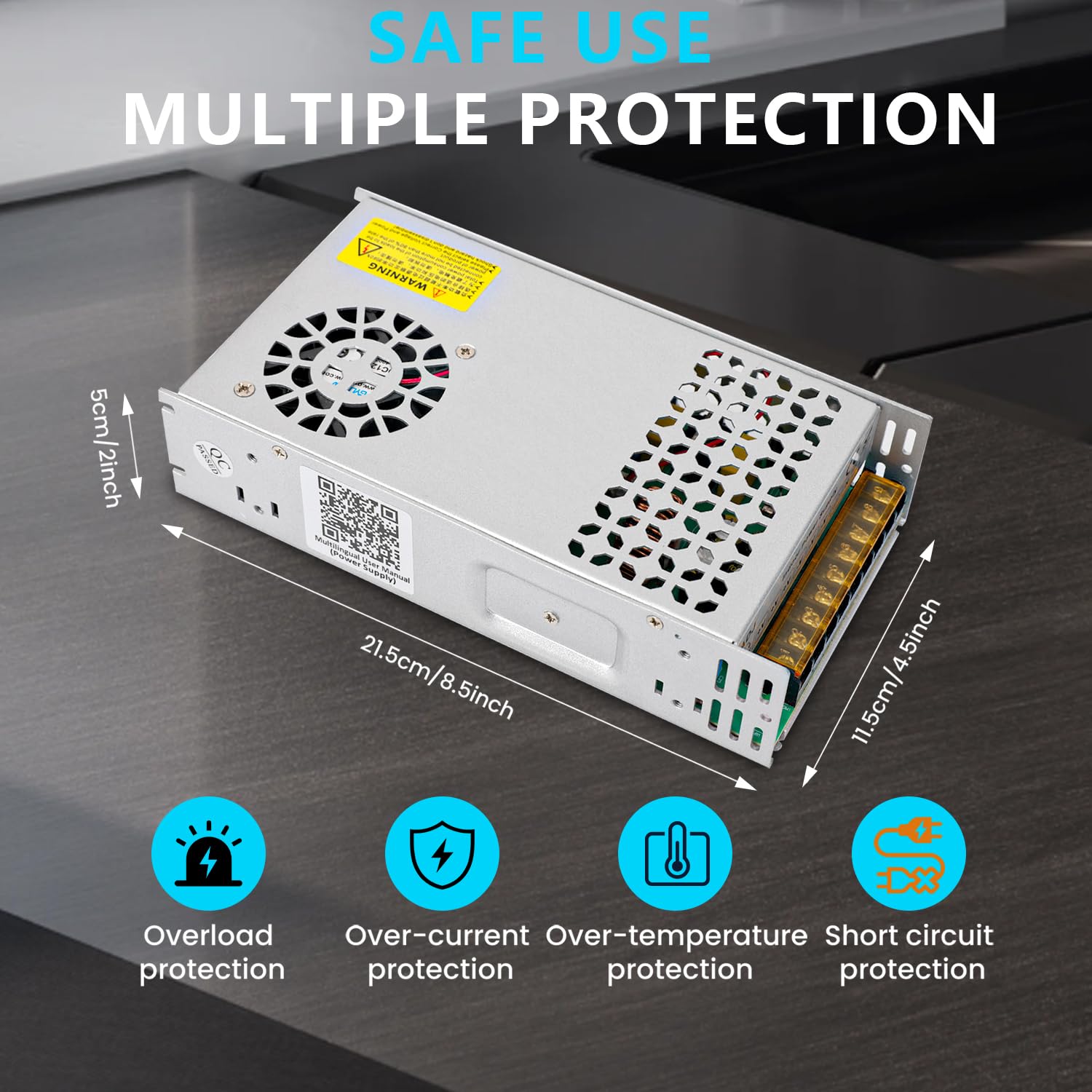

Size:21.5×11.5×5cm/8.5×4.5×2 inch,
weight ：0.68 kg
Note:
SMPS peak power is 50A 600W, avoid overload, recommended for equipment under 42A 480W. For resistive equipment, the power supply power ≥ equipment power x 1.25 times. For motor equipment, the starting current will be much higher than the rated power and the peak power of the SMPS needs to exceed 2 times the motor power.
NOTE:Not suitable for charging Battery, Speed Control Motors.
Two Voltage Modes

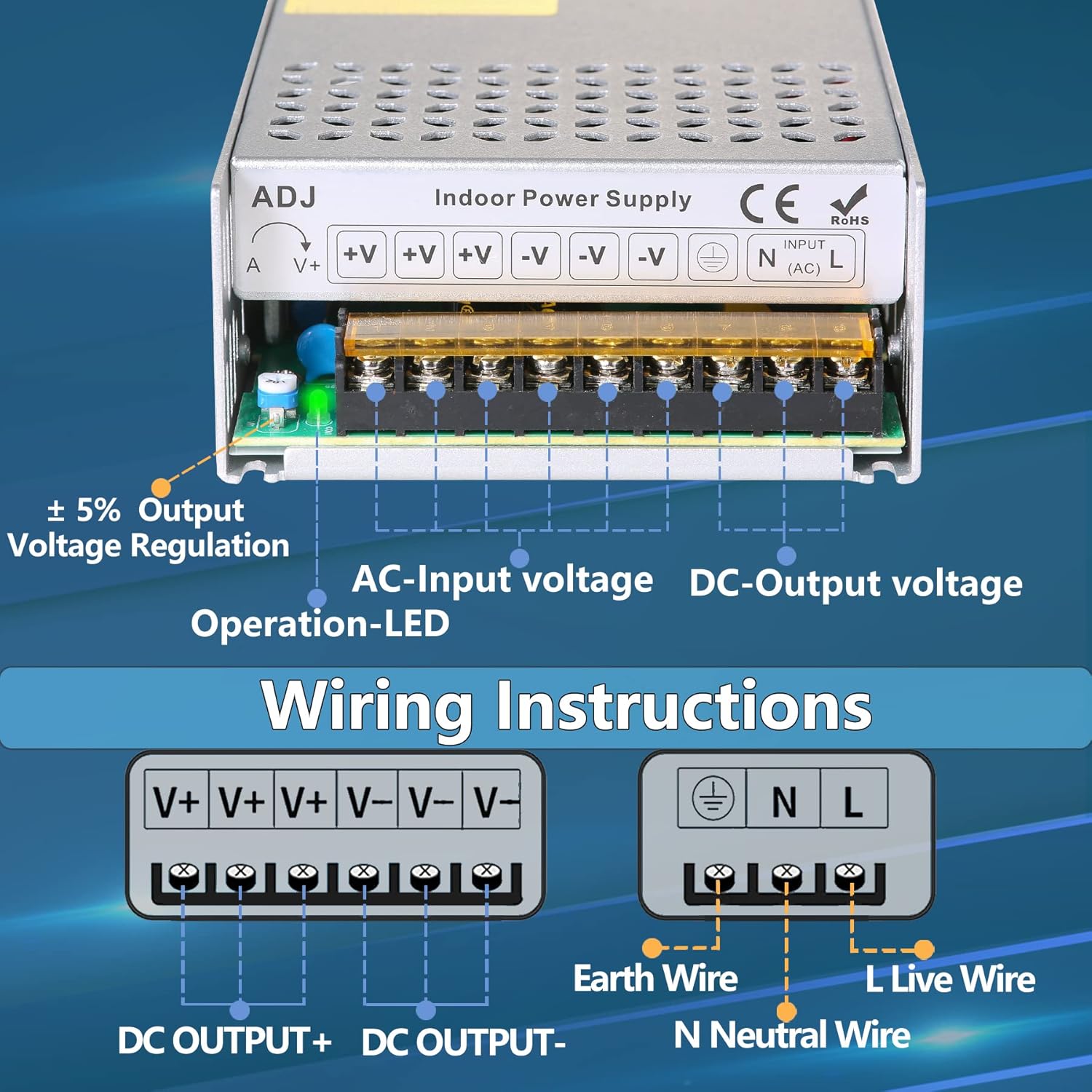

Toggle the red button to adjust the input voltage 115V AC or 230V AC.

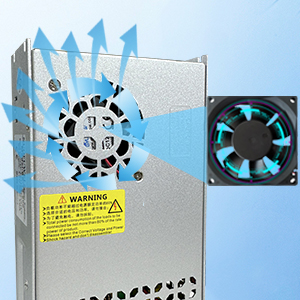

All-Round Heat dissipation
Designed with Many heat dissipation holes, Built-in High speed Cooling fan and dust-proof net, ensure the service working long time.

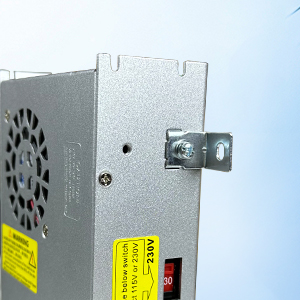

Can Be Hung On The Wall
The product can be hung on the wall, Fix four screws to the machine
Product Dimensions : 2.56 x 4.92 x 2.56 inches; 1.5 Pounds
Item model number : NUOFUWEI-
Date First Available : October 1, 2022
Manufacturer : NUOFUWEI
ASIN : B0BXTP524R
Country of Origin : China
Upgrade 12V Power Supply: Input AC 110V/220V, Output 12V, Rated power 50A 600W, Three sets of output channels available,it can power more devices. Net weight:1.6kg; Size: 24.5 x 12.5 x 6.5 cm

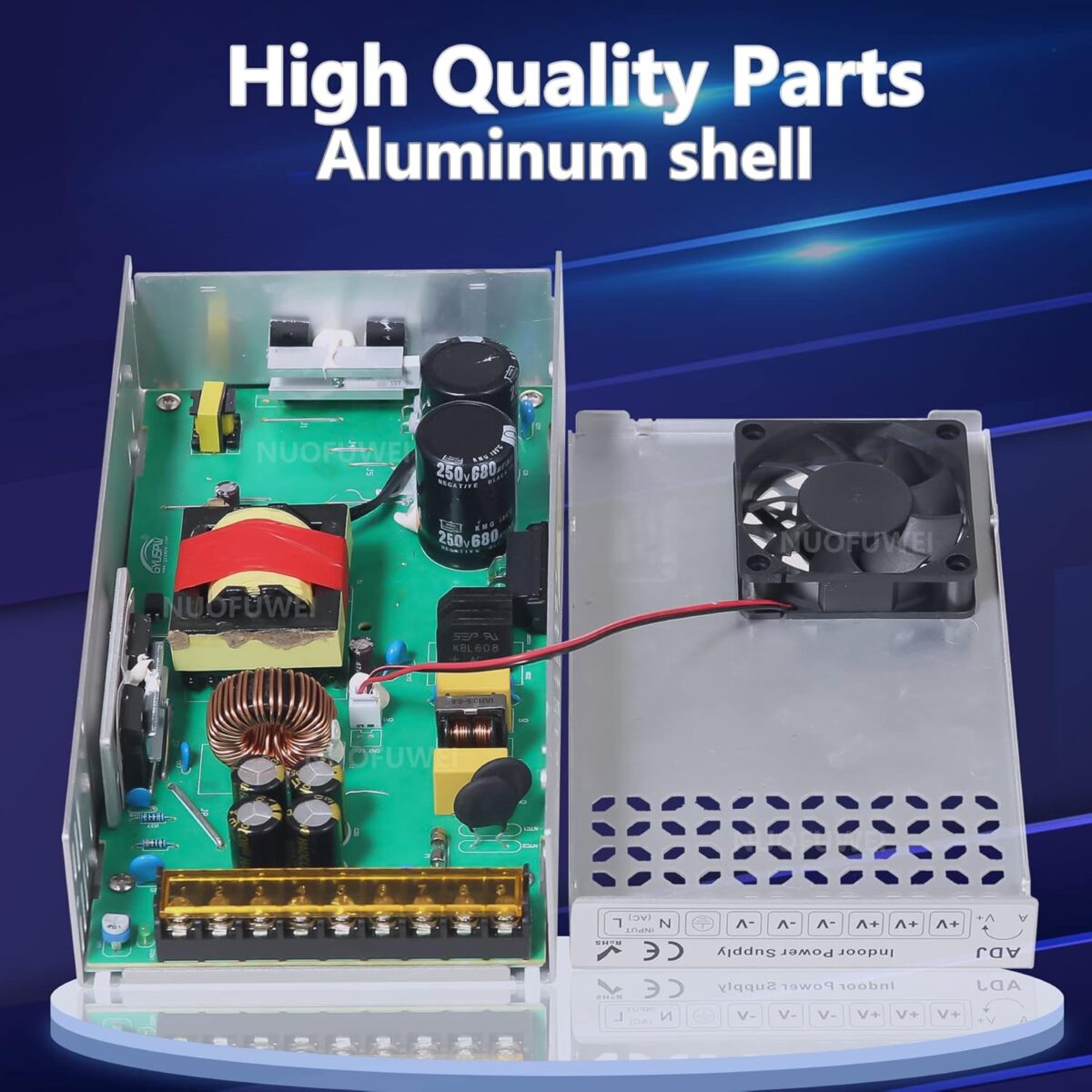

New Version Converter:This switch transformer adopts a frosted aluminum alloy casing, which is durable and won’t scratch.Equipped with built-in cooling fan,Intelligent chip provides automatic overload cut-off, overvoltage cut-off, automatic overheat cut-off

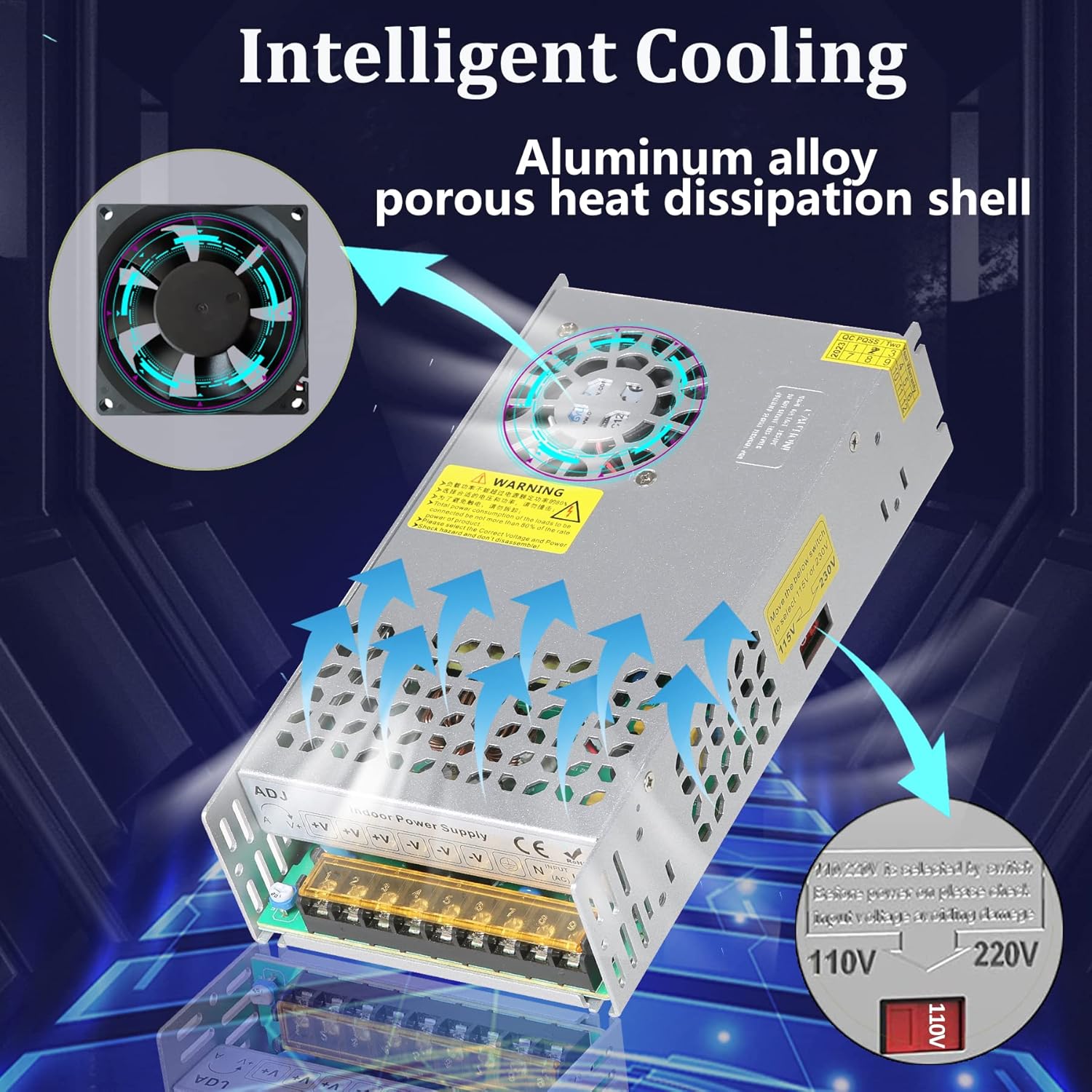

Intelligent cooling: The 12V 50A 600W power converter is designed with a frosted aluminium housing, with multiple cooling holes,Built-in Cooling fan, Ensure stable rotation of the fan and prevent the circuit board from burning
Safe Stable:Switching Power Supply Overload Protection, over voltage protection, Leakage protection and short circuit protection function.Switching Power Supply power cord and plug have passed UL/CE/RoHS certification
Applications Widely:DC 12V Power Supply Used for industrial automation equipment, radio,Amplifier,Radios,LED drive, CCTV Camera System, 3D Printer, Car Stereos, water Pump and more 12V Device.
Customers say
Customers find the power supply works well, with one mentioning it’s a good upgrade for 3D printers. They appreciate its power capabilities, with one customer noting its range from 110V AC to 12V DC, and consider it good value for money. They like its ease of installation, with one mentioning it’s easy to wire.
jimn –
Works perfectly
I originally purchased this to power some solenoids for automate some special effects for the pinball machine in a performance of “Time of Your Life”. After the play was struck, I now use to power a 12 VDC pump for my rain barell drip irrigation systems.
J.P. –
Power output is great
Works just as good as the brand name power supplies.
Paulster2 –
A very good upgrade for your 3D printer
Many years ago I bought an Anet A8 clone 3D printer, you know, the kind with the acrylic frame you have to completely assemble. This kit came with a 12v power supply which was, at best “adequate” for what is needed to power the printer. At a max of 235w, there’s not a lot of headroom.Recently I upgraded the acrylic frame to extruded aluminum. I figured since I was doing that I’d also upgrade the old power supply. Looking through the Jungle site, I found this one. At 600w, it leaves me a lot of headroom so I can do a couple more upgrades to my printer which needs power.There’s a couple of things you need to know about this specific power supply. The first thing you need to know is if you are upgrading from the original A8 clone is, the mounting holes are different. You’ll need to either drill new holes in the acrylic mount or you need to print another mount if you’re using extruded aluminum frame.When you first start up the power supply, you’ll “burn” off the new and you’ll smell it. It isn’t that it’s overheating, it just is what it is. I’ll assume this will go away over time and after whatever chems they put on the parts evaporates from the power supply. Just one of those things.Make sure you measure the voltage coming out of the power supply. There is a pot (potentiometer – noted in the description) where you can adjust the voltage. I don’t know if a “little extra” or “not quite enough” is going to cause you any issues, but since you have the ability to adjust it to nearly perfect, why not just take care of it. Mine came on at 12.48v. My first adjustment put it down to 11.7v and it was a just a little tweak. Don’t get over zealous on it because it only takes VERY little adjustments to make the voltage move. When I was done I settled on 12.07v which I figured was close enough.One other little thing of note is the cooling fan in the power supply is a little noisy. Something you’ll need to get used to.Overall, the power supply seems like a great upgrade. It works as described and is a reasonable price. I would recommend.
Amazon Customer –
works great
perfect.step down transformer.120-12 volt.paired with 12v 60 amp speed control.attached to 3500 lb 12 volt winch.modified for power bead roller.low to 16 rpms to over 100 rpms.
J. M. Cope –
Works very well with a 2500 # winch
I bought this to replace using batteries for power source. Good decision. Wont have to be replacing batteries that go bad whether they are used or not.
Norm R –
Perfect for my application.
Rock solid in holding voltage over specified range. Wish it had an on/off switch and better instructions on converting between 115/230 input voltages. I am conversant with these electrical matters but most aren’t.
Thomas clark –
this products DV connecfions are reversed
it still works just fine just contacts gor swapped so id say 6/10
Dean Livingston –
Good power supply
Easy to adjust to 13.8VDC and very stable under my 23 Amp load.
Gerd Hedler –
Wie Beschrieben, für Dieselheizung.
Client d’Amazon –
Le produit correspond à mes attentes
domi –
muy bueno
Alain LIEBER –
fonctionne bien voire avec le temps
Marek Czarnowski –
Wszystko jest okej
