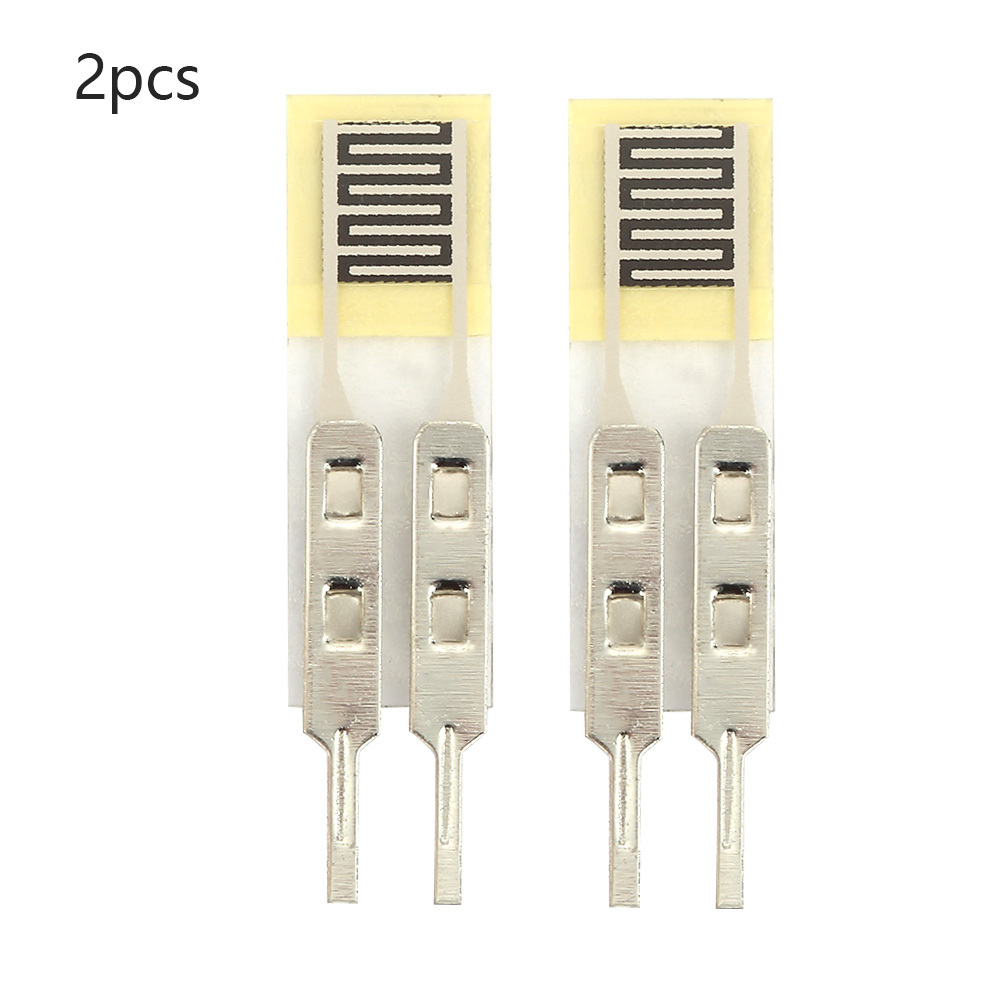

2pcs 10g~1kg High Precise Resistance Type Thin Film Pressure Sensor Force Sensor

Key Words :

Force,Sensor§,Pressure,Sensor§,Pressure,Resistor§,Force,Resistor§,Thin,Film,Pressure,Sensor


Features :

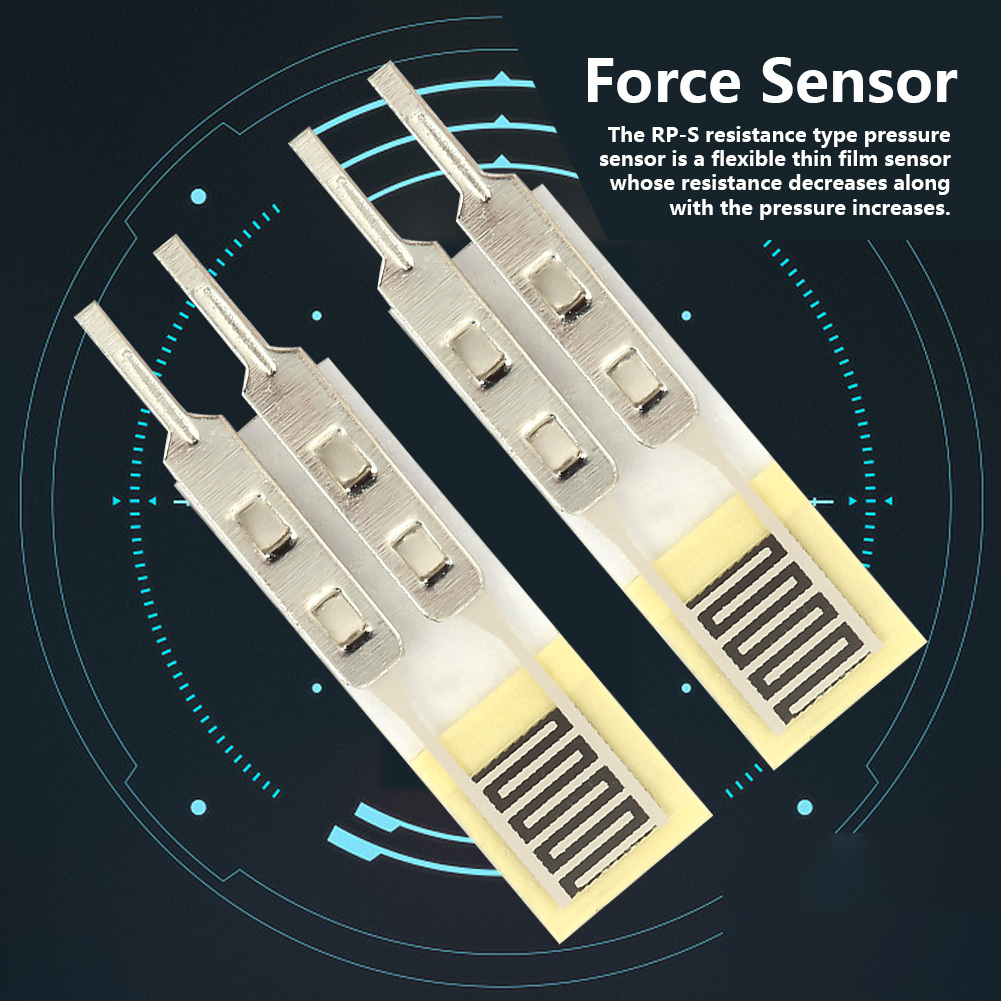

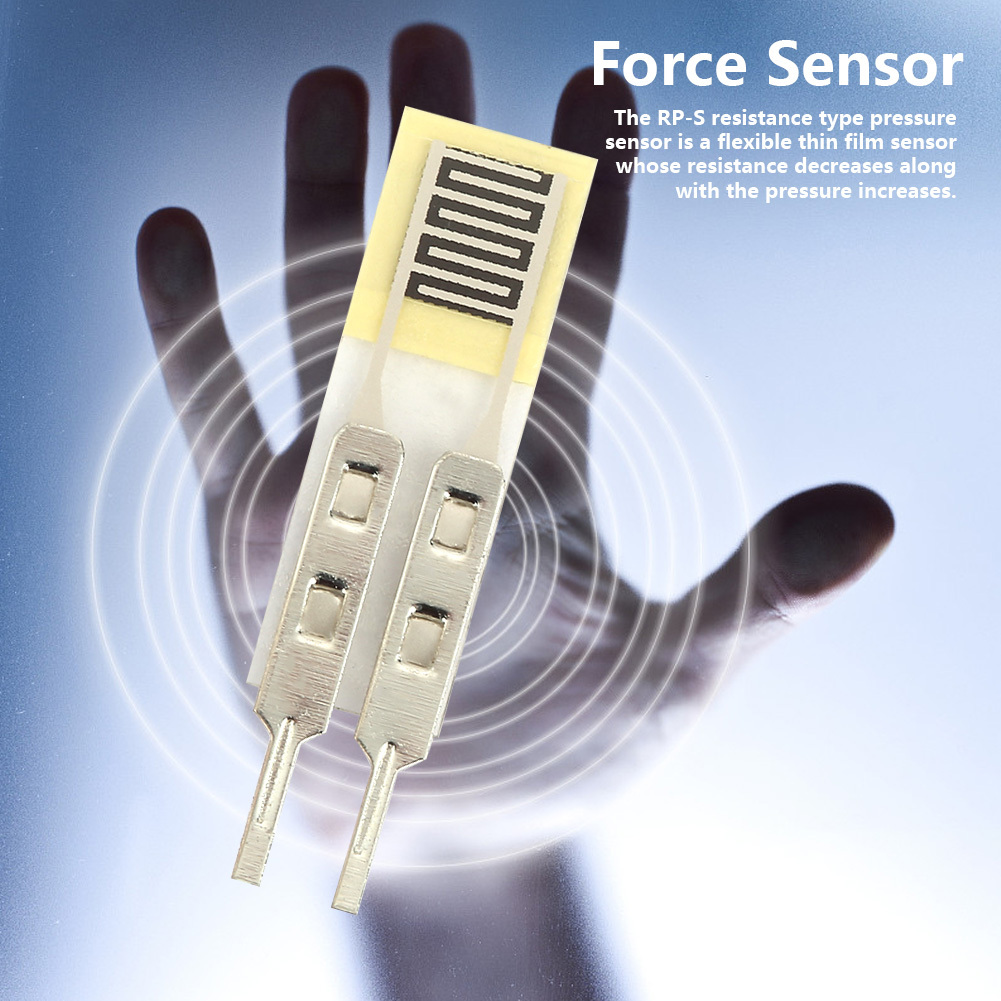

1、The RP-S resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases. 2、Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting. 3、The pressure sensor supports static/dynamic pressure sensing, and has fast response speed. 4、Made of high quality material, the sensor is durable and has long service life. 5、Widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment.


Specification :

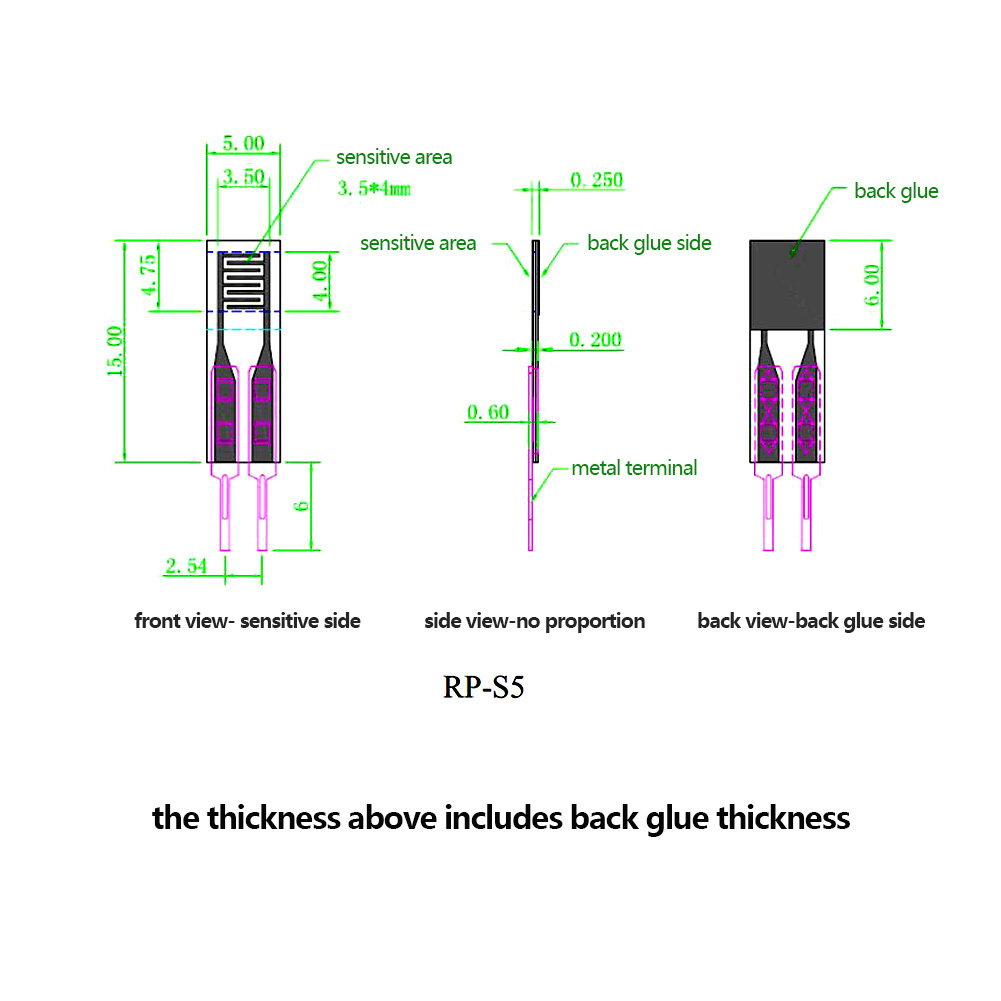

The RP-S flexible thin film pressure sensor is composed of polyester film of excellent comprehensive mechanical properties, high conductive material and nano-scale pressure sensitive material; the top is a flexible film and pressure sensitive layer above, the bottom is a flexible film and conductive circuit above.Both are glued by double-sided adhesive and the isolation sensitive zone.When there is pressure on sensitive area, the disconnected circuit on the bottom will be connected by top pressure-sensitive layer, and the output resistance of the port changes along with pressure. Features: The RP-S resistance type pressure sensor is a flexible thin film sensor whose resistance decreases along with the pressure increases. Single sensitive area pressure sensor is equivalent to a dual port variable resistance whose resistance is controlled by pressure, and to a switch of a certain threshold, the threshold is determined by pressure and equipment parameters setting. The pressure sensor supports static/dynamic pressure sensing, and has fast response speed. Made of high quality material, the sensor is durable and has long service life. Widely used for bed monitoring, sleep monitoring, smart shoes, smart switches, counters and medical equipment. Specification: Model: RP-S5-ST Thickness: 0.25 mm Trigger force: 10 g, triggered when resistance is less than 200 kΩ by default Pressure sensing range: 10 g ~ 1 kg Pressure action mode: Static or dynamic (frequency within 10 Hz) Non-trigger resistance: More than 10 MΩ Activation time: less than 0.01 S Operating temperature: -40 ℃ ~ +85 ℃ Lag: +10%, (RF+ – RF-)/FR+, 1000g force Response time: < 10 ms Drifting: <5%, 2.5Kg force static load 24H Weight: 1g / 0.04oz (approx.) Package list: 2 * Pressure Sensors

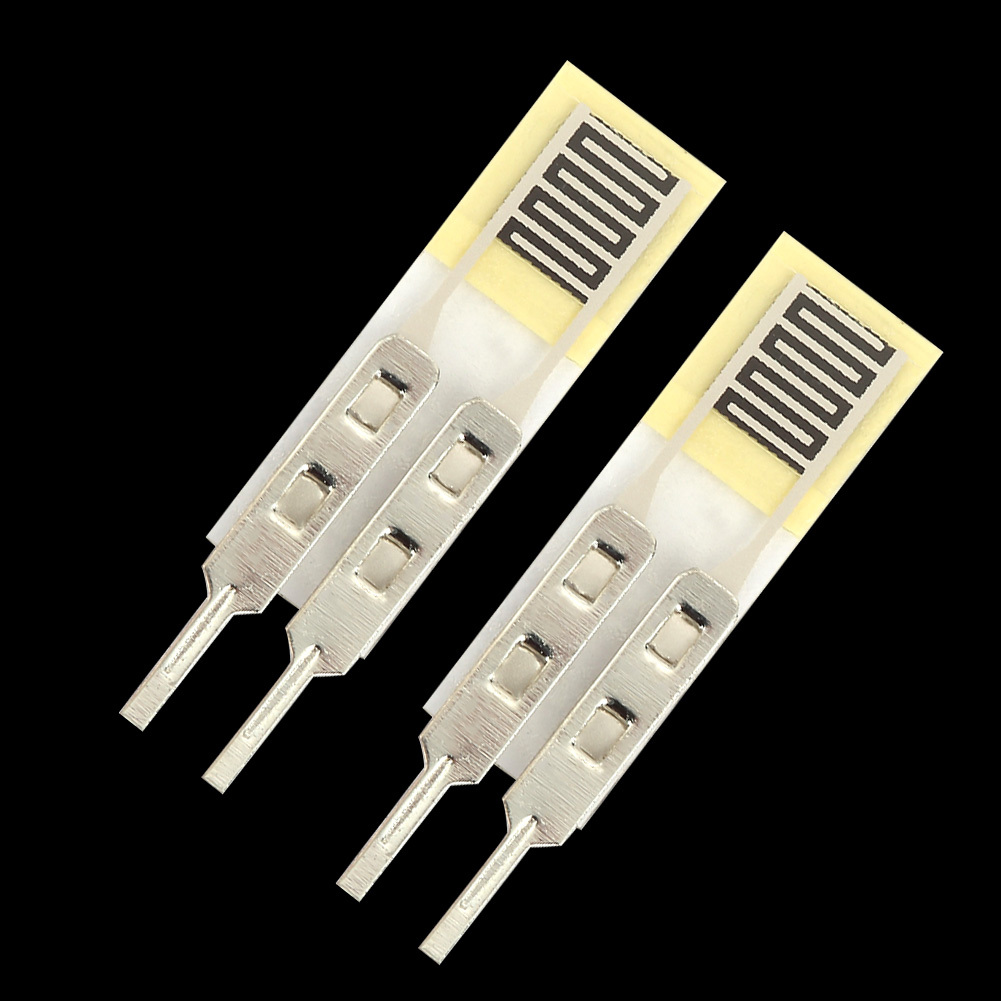

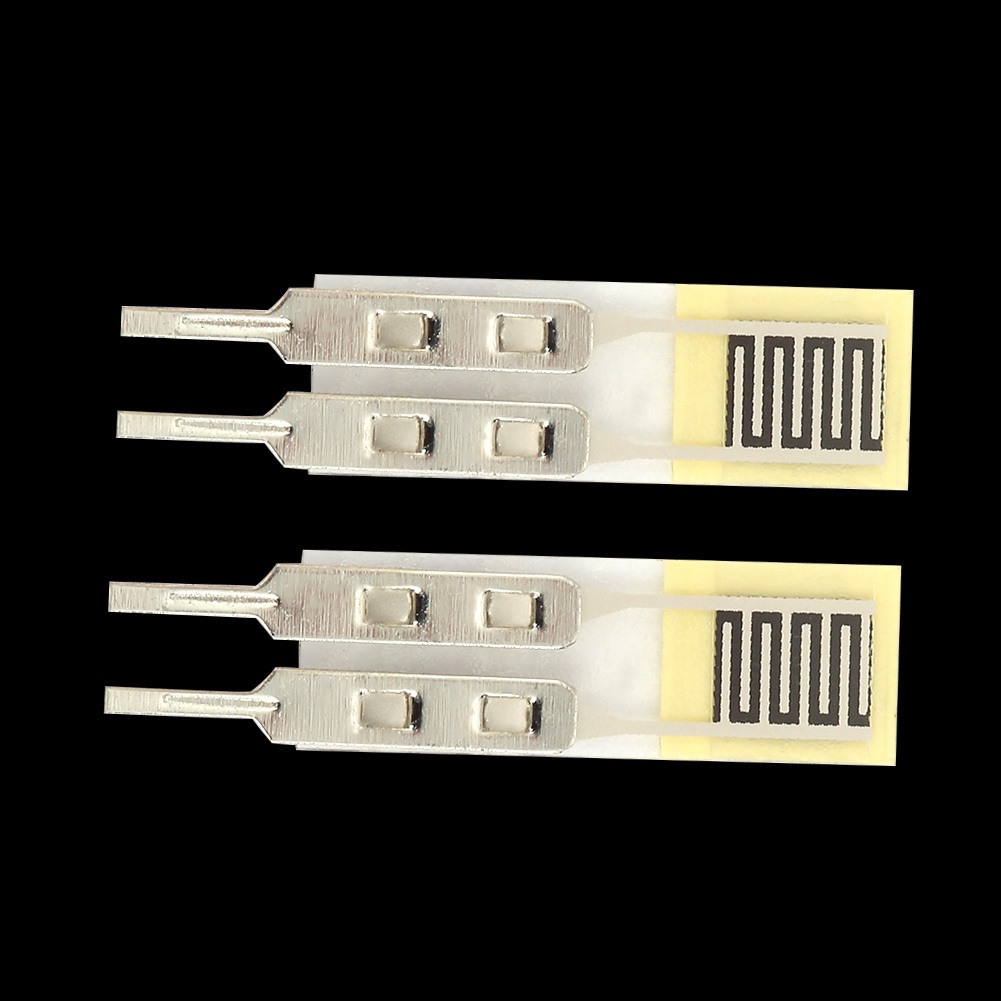

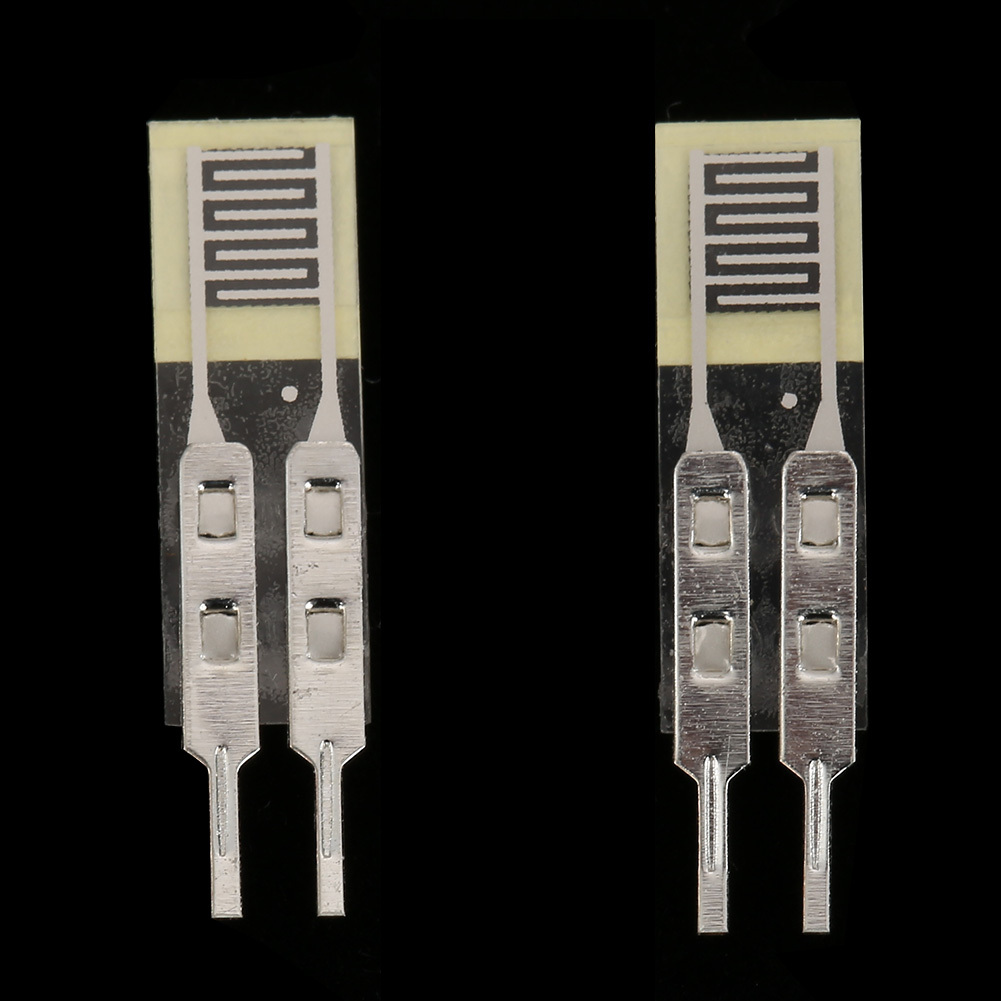

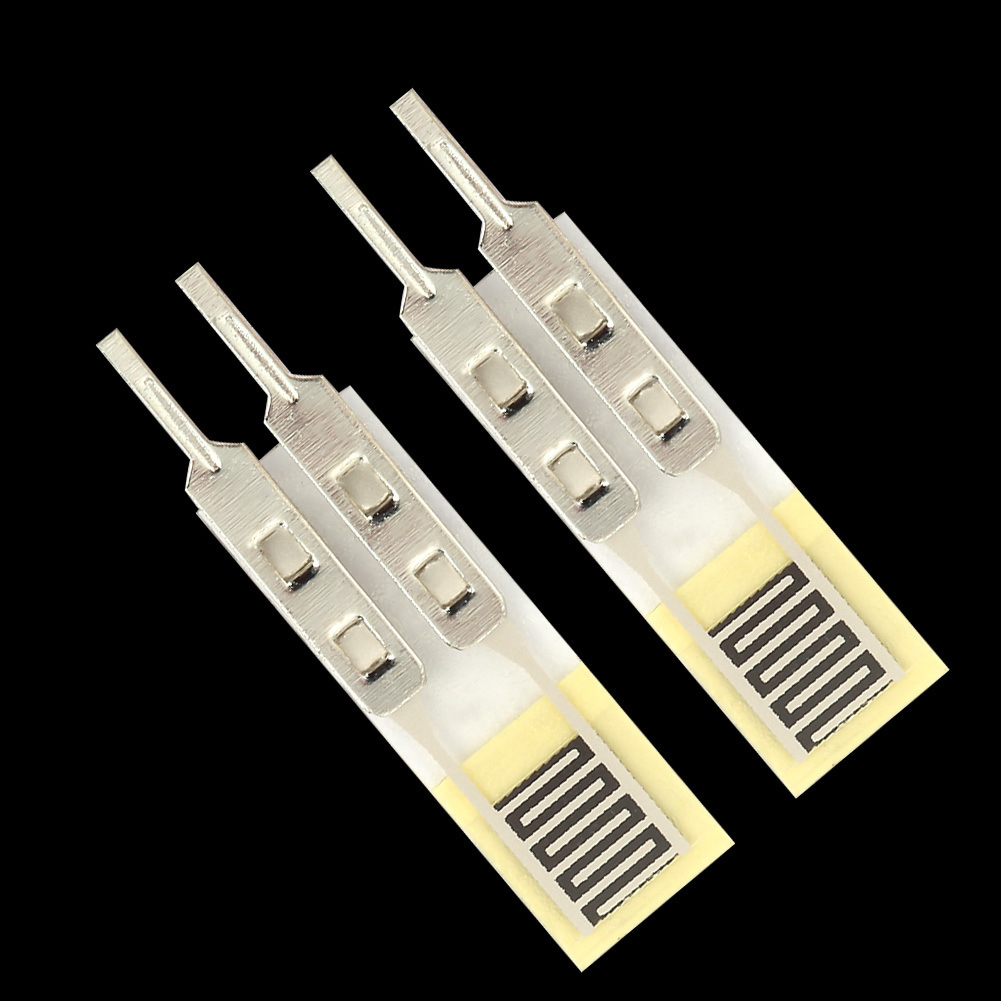

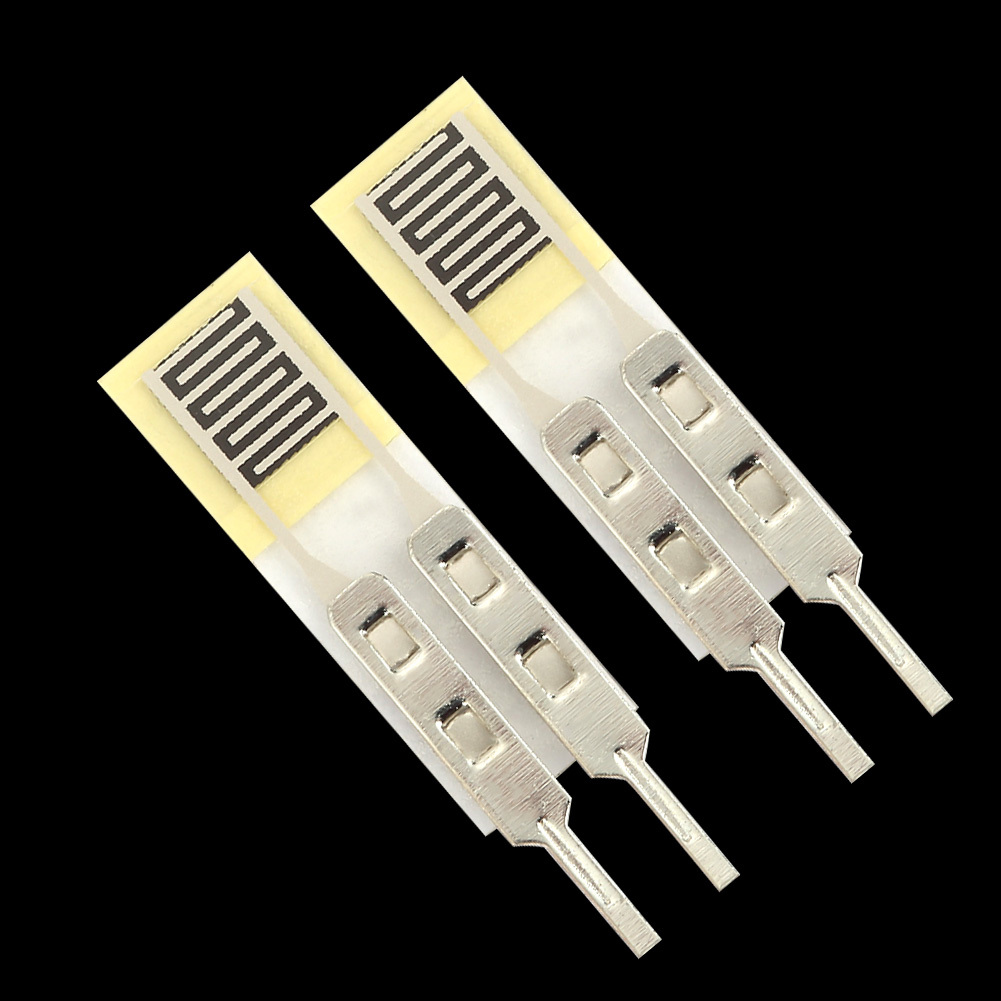

Product Image :
