100A AC 80~260V Digital Power Meter Monitor Voltage KWh Watt Voltmeter Ammeter

Key Words :

LCD,Digital,Display,Ammeter§AC,Digital,Power,Meter§Digital,Voltage,Current,Monitor§LCD,Display,Voltage,Current,Power§AC,Digital,Measuring,Monitor§Power,Distribution,Control,Equipment


Features :

1、The digital power meter monitor on the large screen of this power monitor can measure, monitor and display electrical parameter readings. 2、This digital power meter monitor could work well under AC 80‑260 V, and do not make the maximal current be more than 100 A . 3、The power monitor also has a power alarm threshold preset function, which you can set by yourself. 4、When the measuring voltage more than watt alarm threshold, the backlight of the digital power meter monitor will flash. 5、The large screen of this power monitor can facilitate you to watch the detected parameters and make judgments.


Specification :

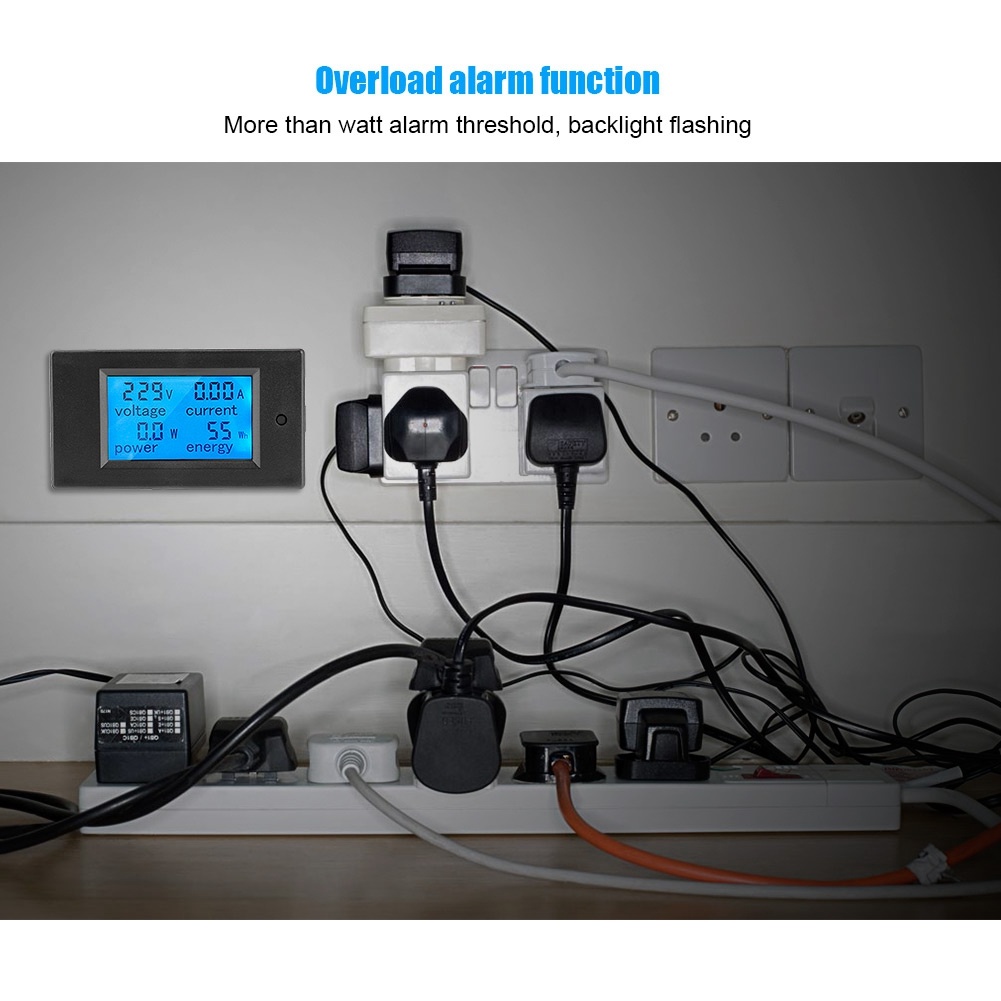

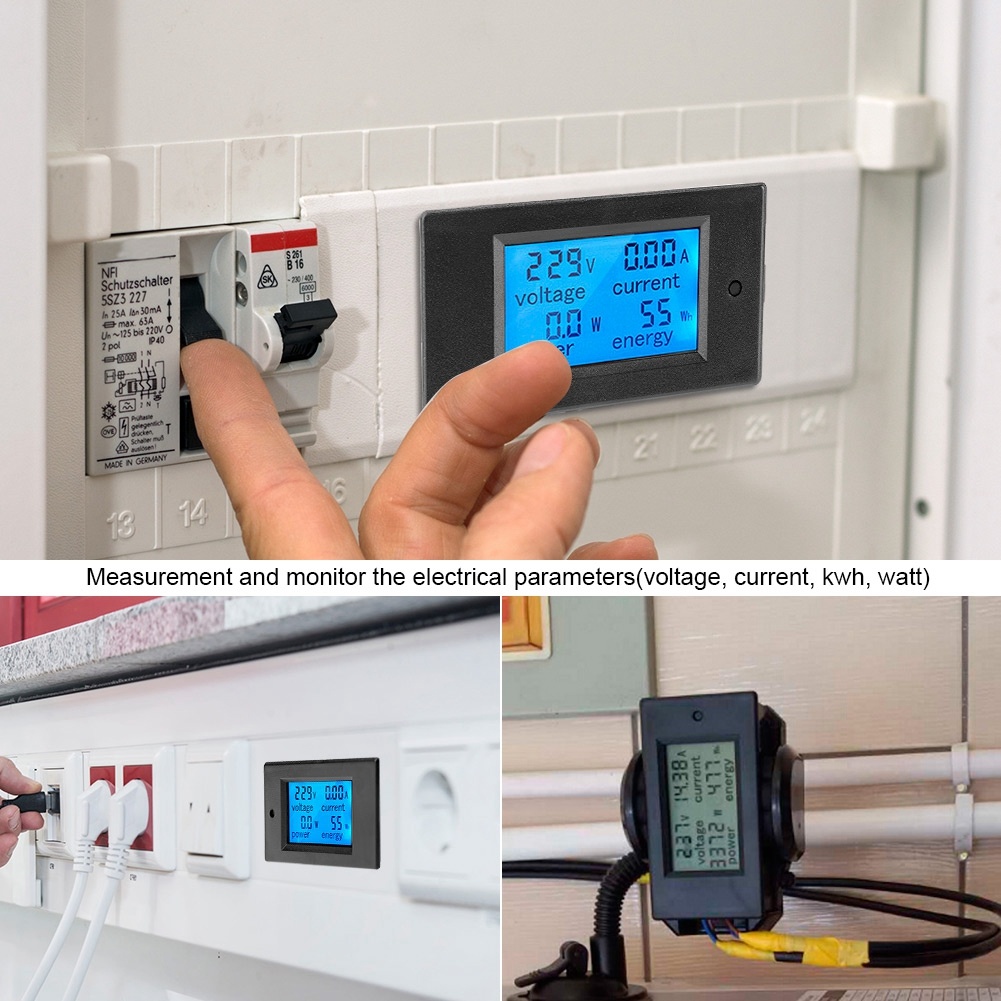

Specification: The working voltage: 80-260VAC Test voltage: 80-260VAC Max power: 100A/22000W Working frequency: 45-65Hz The measurement precision: Class 1 About Function: – Measurement and monitor the electrical parameters(voltage, current, kwh, watt) – Overload alarm function(more than watt alarm threshold, backlight flashing) – Power alarm threshold preset function(can set up their own power alarm threshold) – Power(kwh)button reset function – When power off ,store the data, when on ,continue the date – Large screen LCD liquid crystal screen full display function(voltage, current ,kwh,watt) – Backlight function About Display: Display interface. By the large screen LCD display LCD monitor voltage and current,kwh,watt,electric parameters 1. Watt: the measurement range of 0-22kW less than 1kW: 0.0-999.9W less than 10kW: 1000-9999W less than 22kW: 10.0-22.0kW 2. kwh: the measurement range of 0-9999kwh less than 10kWh:0-9999Wh more than 10kWh:10-9999kwh 3. The test voltage range of 80-260V Display format 80-220V 4. Current test range:0-100A Display format: 0.00-99.99A About Button: – Backlight control can turn on/off backlight by short press – Power reset Step 1: long press the button (about 5 seconds),til display flicker, then release the button Step 2:if short time press the button again, the power(kwh)reset zero and exit flicker Step 3:if long time press button for 5 seconds until it is no longer flicker, power(kwh)data is not cleared and exit – Set the alarm(watt) Step 1: long press the button, till the LCD screen display “SET CLr”,release the button Step 2: show the alarm (watt)value,short time press, value (number)increase don’t press the button for 3 seconds, the setting switch to other bit Step 3: long time press the button(about 5 seconds)—->save the threshold watt value threshold setting watt range:0-22.0kW Notices: 1. Suitable for indoor ,not outdoor 2. Should not exceed te rated power 3. Wiring can not be wrong 4. The tape’ color of the CT will be random   Package Includes: 1 x AC 100A Power Meters Monitor Volt Amp kWh Watt Digital Cambo Meter with case 1 x CT

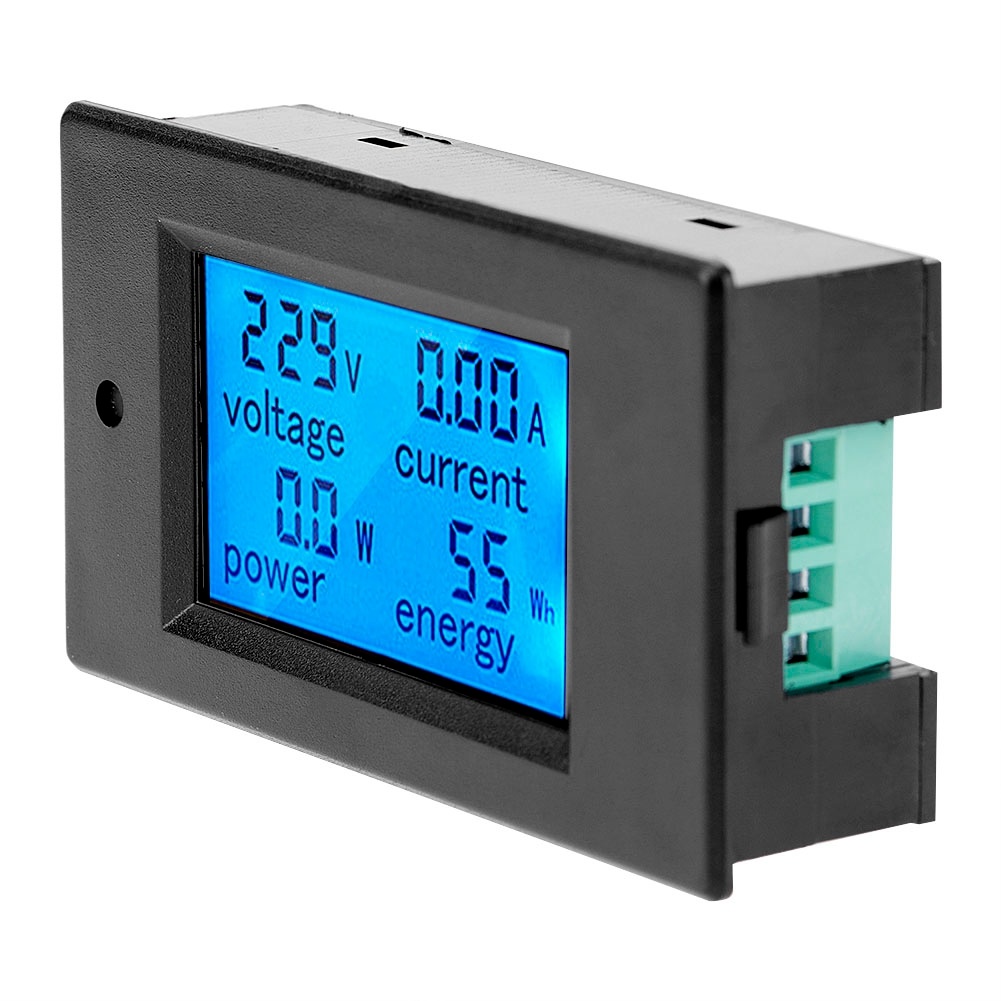

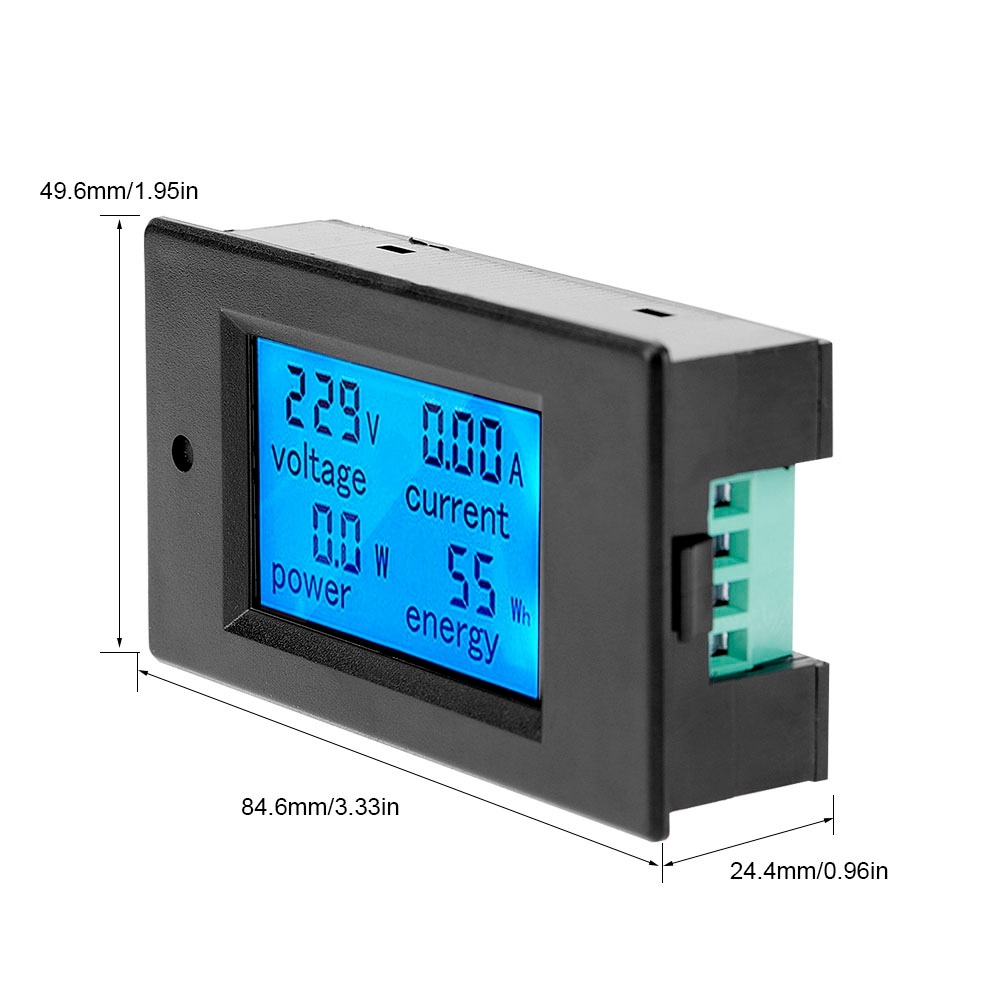

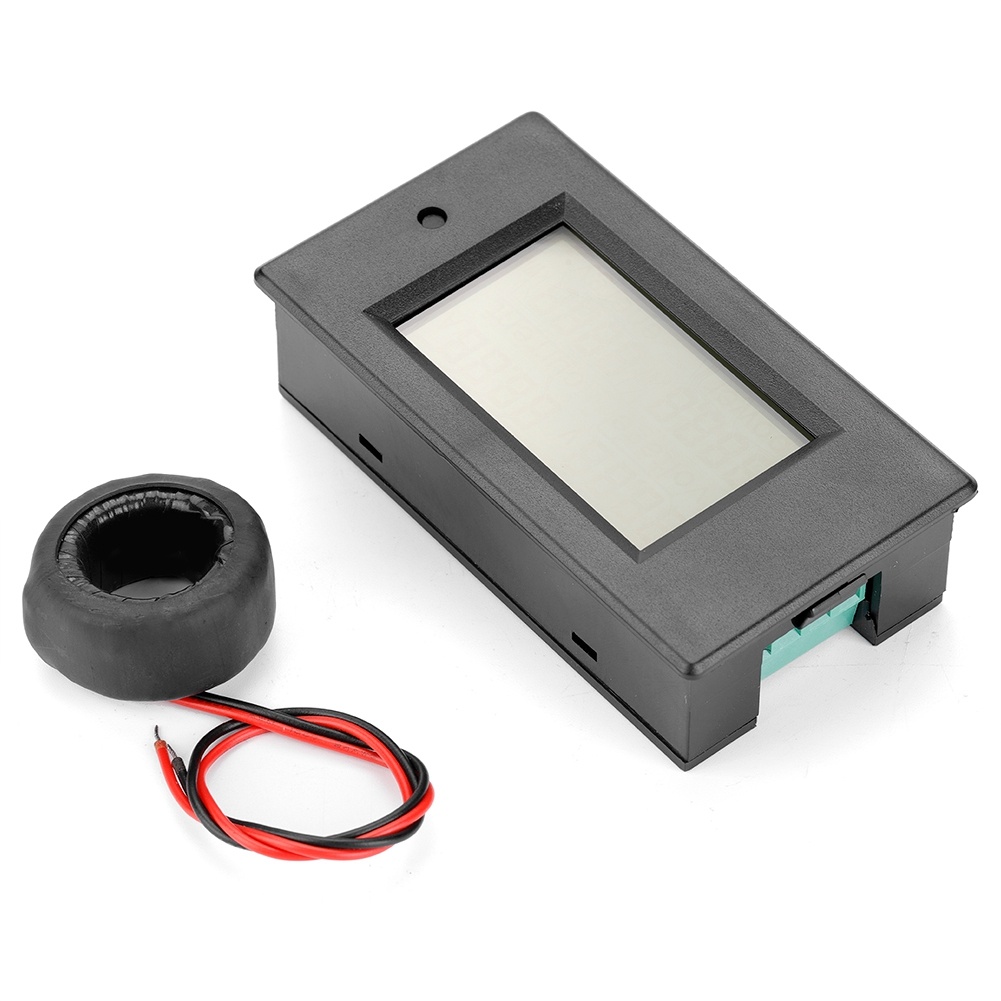

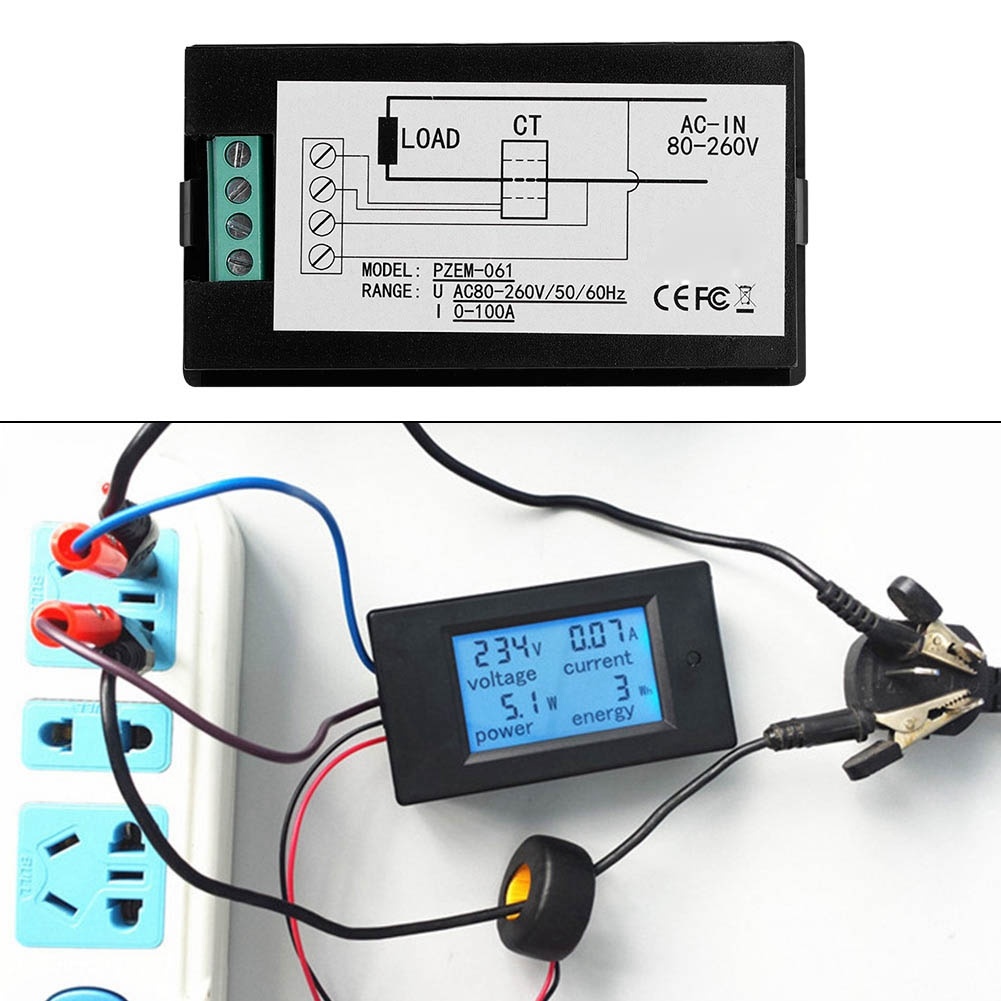

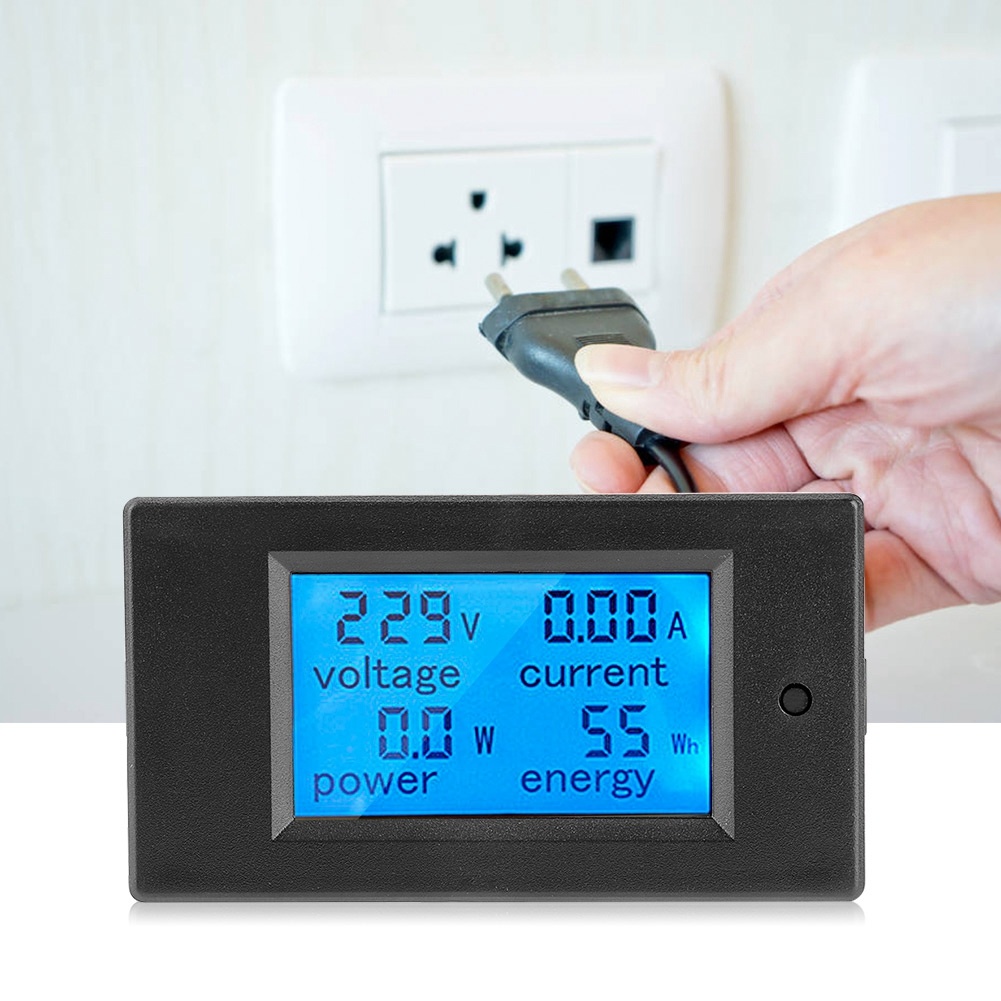

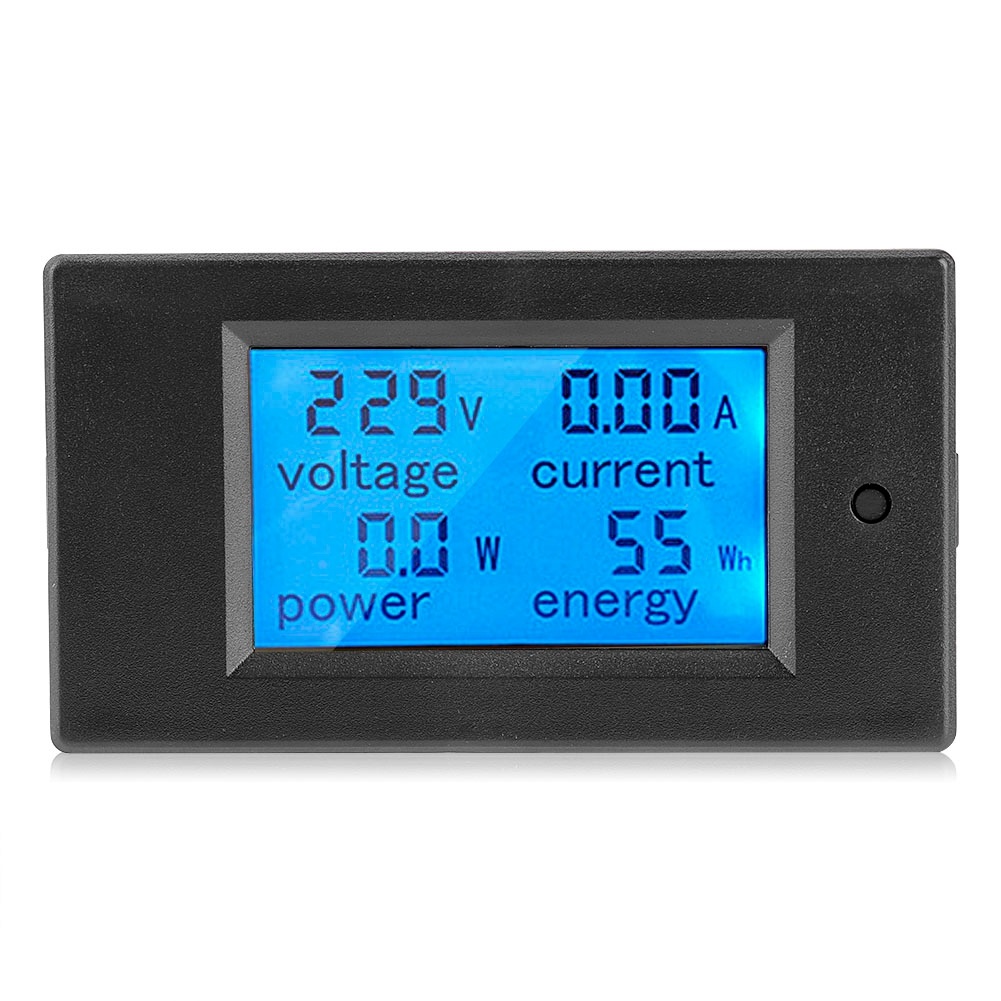

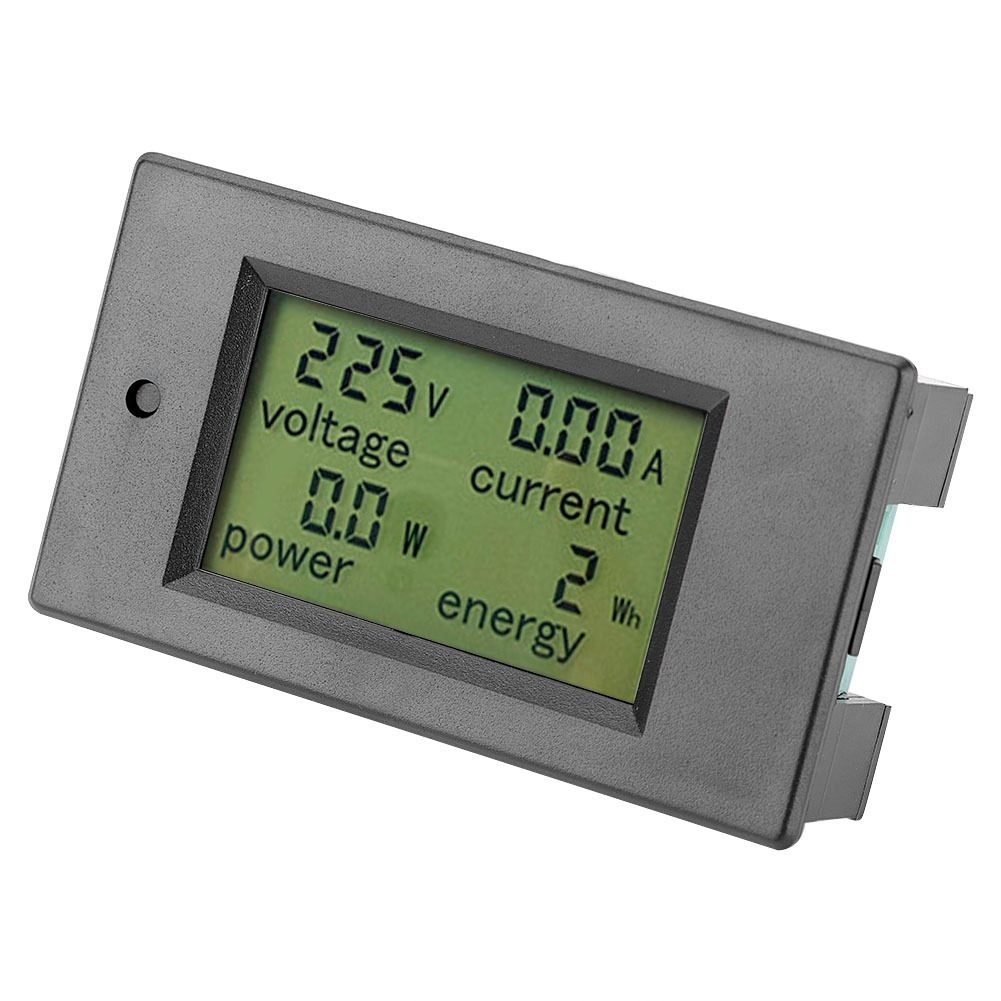

Product Image :
